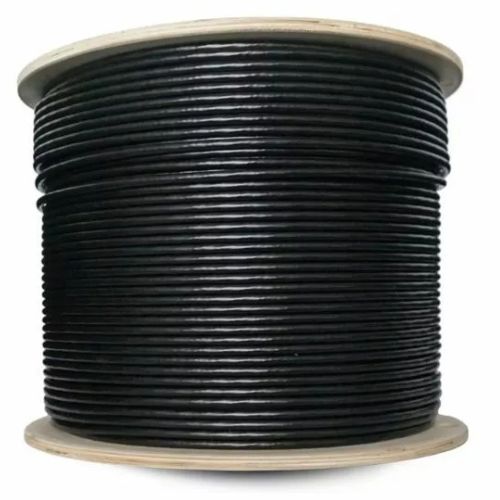

Cat6 UTP LAN Outdoor JEL Filled Cable | 305m on a Reel : Black, UV stabilised
Suitable for direct underground burial, in addition, the sheath is UV stabilised for protection if there is any part of the cable exposed to sunlight.
Protect your cables from the harsh Australian environment - from sun damage, moisture, and possible corrosion resulting in electrical shorts and equipment deterioration. CAT6 UTP GEL Filled Outdoor 23AWG UV Stabilised cable can broadcast up to 550MHz for broadband video, meeting the telecommunications standards of EIA/TIA 568 C.2 for the construction of cable components and operations. These Category 6 outdoor cables transmit data across a copper distributed data interface (CDDI), optimal for great Gigabit Ethernet performance.
FEATURES
- Unterminated
- Bare Copper / 23AWG
- Impedance Matched - providing high speed, error-free transmission
- 23AWG Solid Copper Conductors
- Metre marked Black UV stabilised jacket
SPECIFICATIONS
- Cable Type: CAT6
- Connectors: Un-terminated
- Length: 305m
- Colour: Black
- Jacket Material: PE
- Filler Material: Jelly Filling Compound
- Insulation Material: LDPE
- Diameter: Nominal 6.4mm
- Nominal Velocity of Propagation (NVP): 69%
COMPLIANCES
- All proposed category 6 requirements as per ANSI/TIA, ISO/IEC, and CENELEC EN standards
- ANSI/TIA-568-C.2 Cat.6
- ISO/IEC 2nd Edition 11801 CLASS E
- CENELEC EN 50173-1
- CENELEC EN 50288-6-1, IEC 61156-5 for horizontal cable
- Flame retardancy is tested according to UL1581
APPLICATIONS
- 1000BASE-TX Gigabit Ethernet
- 10BASE-T, 100BASE-TX Fast Ethernet (IEEE 802.3)
- 100 VG - AnyLAN (IEEE802.12), 155/622 Mbps ATM
- 550MHz Broadband Video
- Voice, T1, ISDN
