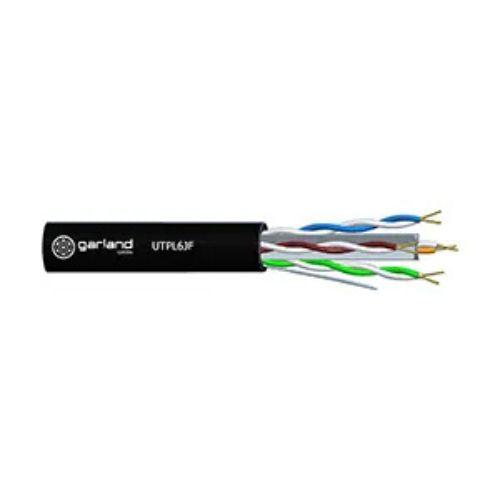

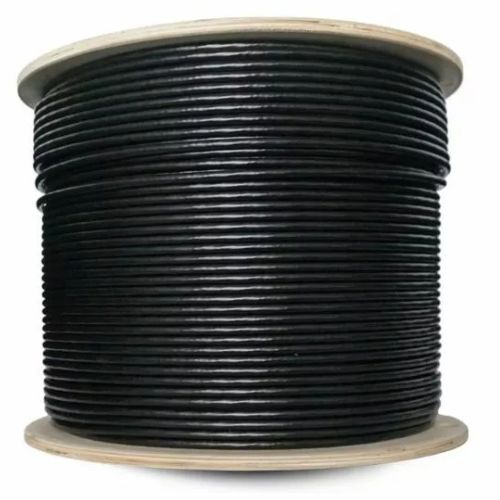

Cat6 UTP LAN Outdoor JEL Filled Cable | 305m on a Reel : Black, UV stabilised

Suitable for direct underground burial, in addition, the sheath is UV stabilised for protection if there is any part of the cable exposed to sunlight.

Protect your cables from the harsh Australian environment - from sun damage, moisture, and possible corrosion resulting in electrical shorts and equipment deterioration. CAT6 UTP GEL Filled Outdoor 23AWG UV Stabilised cable can broadcast up to 550MHz for broadband video, meeting the telecommunications standards of EIA/TIA 568 C.2 for the construction of cable components and operations. These Category 6 outdoor cables transmit data across a copper distributed data interface (CDDI), optimal for great Gigabit Ethernet performance.

FEATURES

Unterminated
Bare Copper / 23AWG
Impedance Matched - providing high speed, error-free transmission
23AWG Solid Copper Conductors
Metre marked Black UV stabilised jacket

SPECIFICATIONS

Cable Type: CAT6
Connectors: Un-terminated
Length: 305m
Colour: Black
Jacket Material: PE
Filler Material: Jelly Filling Compound
Insulation Material: LDPE
Diameter: Nominal 6.4mm
Nominal Velocity of Propagation (NVP): 69%

COMPLIANCES

All proposed category 6 requirements as per ANSI/TIA, ISO/IEC, and CENELEC EN standards
ANSI/TIA-568-C.2 Cat.6
ISO/IEC 2nd Edition 11801 CLASS E
CENELEC EN 50173-1
CENELEC EN 50288-6-1, IEC 61156-5 for horizontal cable
Flame retardancy is tested according to UL1581

APPLICATIONS

1000BASE-TX Gigabit Ethernet
10BASE-T, 100BASE-TX Fast Ethernet (IEEE 802.3)
100 VG - AnyLAN (IEEE802.12), 155/622 Mbps ATM
550MHz Broadband Video
Voice, T1, ISDN
